Features
● It can be used for lifting.
● It is forged and then heat treated.
● The surface treatment of shackle: hot galvanizing/cold galvanizing.
● Nut surface treatment: cold galvanizing.
● Bolt surface treatment: hot galvanizing/cold galvanizing/plastic spraying.
● Ultimate load is 6 times the Working Load Limit.
● It can not be used beyond working load limit.

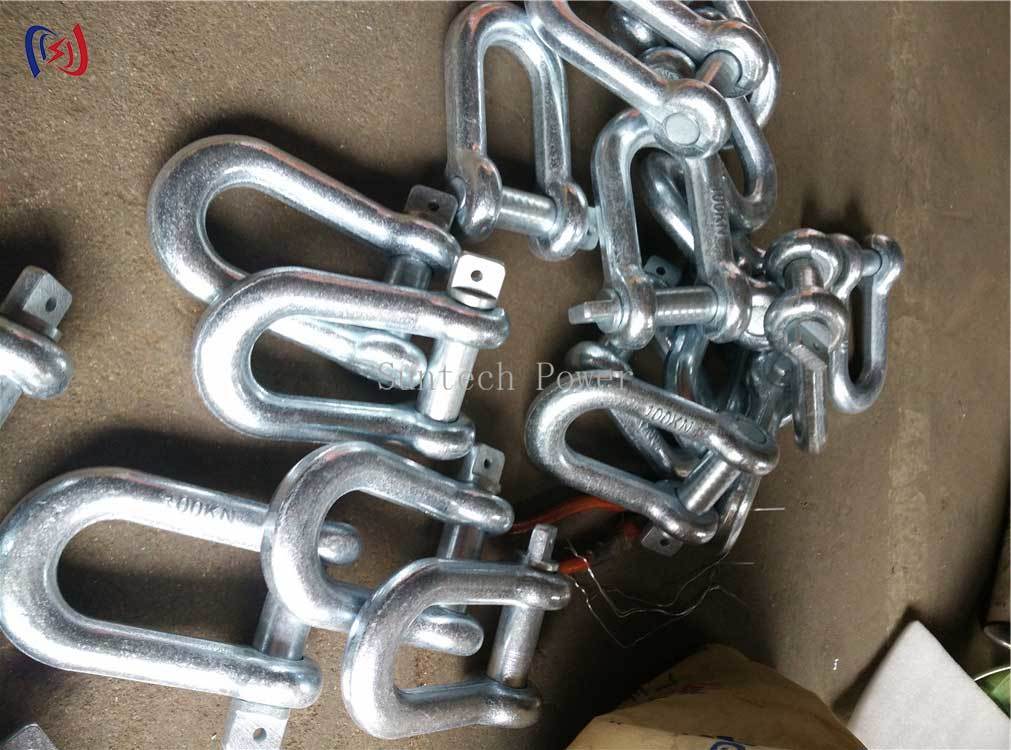

Stringing Equipment High Strength Shackle
1. Rated load: 10~300kN
2. Weight: 0.15~7.5kgs
3. Material: High strength Steel
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
| Item number | Model | Rated Load (KN) | Main Size (mm) | Weight (kg) |
| A | B | C | D |
| 17131 | GXK-1 | 10 | 55 | 42 | 12 | 20 | 0.15 |
| 17132 | GXK-2 | 20 | 67 | 58 | 16 | 22 | 0.29 |
| 17133 | GXK-3 | 30 | 97 | 82 | 20 | 34 | 0.80 |
| 17133A | GXK-3A | 30 | 97 | 112 | 20 | 34 | 0.80 |
| 17134 | GXK-5 | 50 | 107 | 89 | 22 | 39 | 1.12 |
| 17134A | GXK-5A | 50 | 107 | 131 | 22 | 39 | 1.29 |
| 17135 | GXK-8 | 80 | 125 | 96 | 30 | 42 | 2.40 |
| 17136 | GXK-10 | 100 | 141 | 114 | 34 | 48 | 3.56 |
| 17137 | GXK-16 | 160 | 152 | 139 | 37 | 54 | 4.80 |
| 17138 | GXK-20 | 200 | 164 | 140 | 39 | 60 | 5.17 |
| 17139 | GXK-30 | 300 | 186 | 146 | 50 | 68 | 7.5 |
