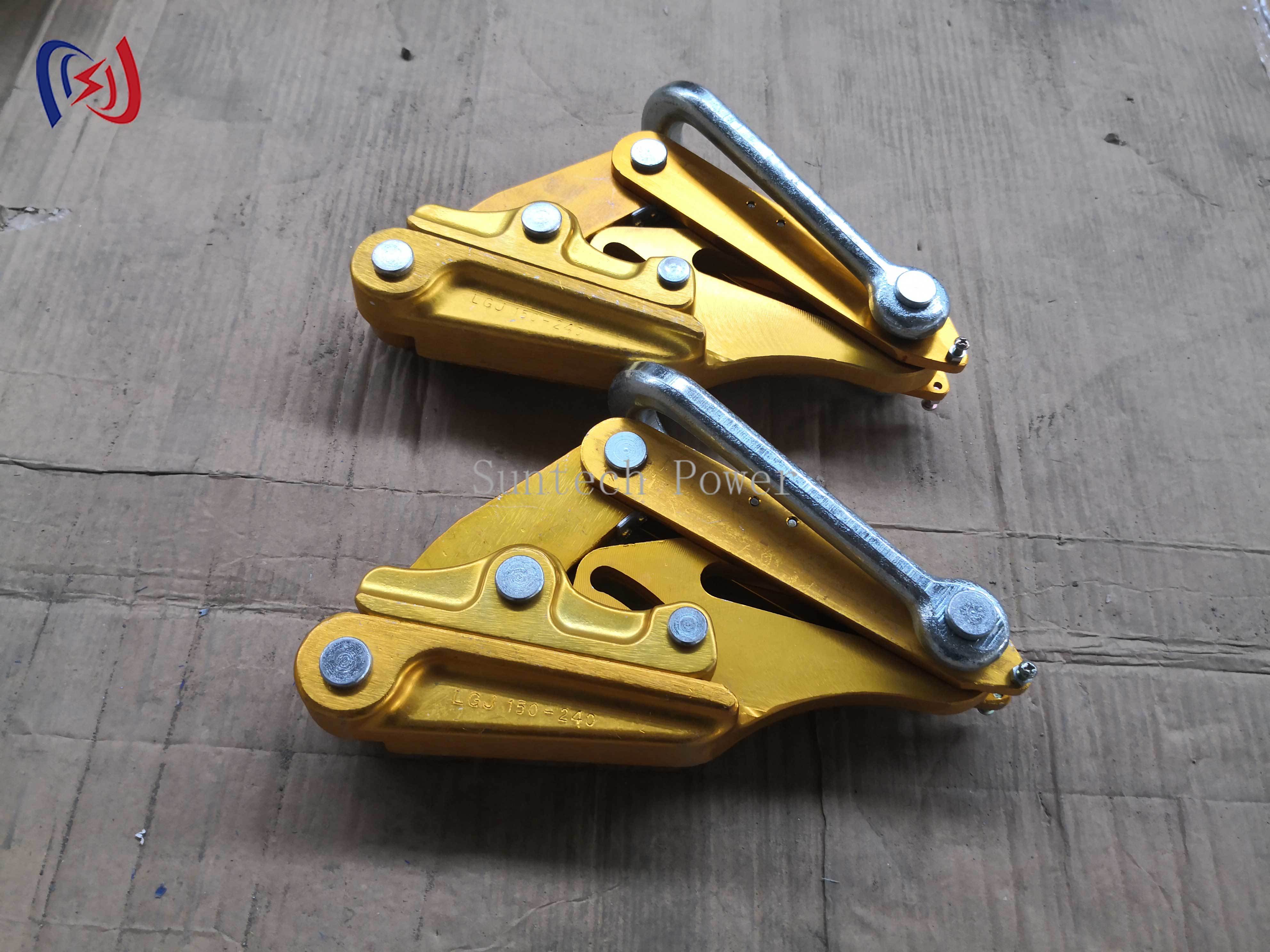

Aluminum Alloy Conductor Gripper Professional Conductor Holding Device For Live Line Maintenance

Name: Aluminum Alloy Conductor Gripper Professional Conductor Holding Device For Live Line Maintenance
Brand: Suntech
Price: 1 USD

Buy cheap Aluminum Alloy Conductor Gripper Professional Conductor Holding Device For Live Line Maintenance product

Brand Name : Suntech

Model Number : SKL

Certification : ISO

Place of Origin : China

MOQ : 1 PCS

Price : Get the newest prices

Payment Terms : L/C,T/T

Supply Ability : 16000 PCS/Month

Delivery Time : 3-5days

Packaging Details : PLywood Case

Name : Aluminum Alloy Conductor Gripper

Item No. : 13221-13229A

Model : SKL-7-SKL-80A

Rated Load : 7-80KN

Max.Open : 14-48mm

Weight : 1-18KG

Contact Now

Aluminum Alloy Conductor Gripper Professional Conductor Holding Device For Live Line Maintenance

Core Design Features

Aerospace-grade aluminum alloy (7075-T6) with titanium reinforcement plates
Self-tightening jaw mechanism with 120mm clamping range (10-50mm conductors)
Dual-stage pressure indicator (visual/audible alerts at 75% & 100% WLL)
Working Load Limit (WLL): 5-25kN (color-coded by capacity)
Conductor compatibility: ACSR/AAAC/ACCC (including 54/7, 72/7 stranding)
Non-marring copper-alloy inserts prevent conductor surface damage

Operational Advantages
✔ 30% faster installation vs traditional bolted clamps
✔ Automatic tension compensation maintains grip during vibration
✔ Ergonomic design reduces hand fatigue (ISO 11228-3 compliant)
✔ Corrosion-resistant for coastal environments (ISO 9227 C5-M class)
✔ Integrated work positioning D-ring (22kN breaking strength)

Safety Certifications
✓ IEEE 1217 conductor gripping device standard
✓ OSHA 1910.269 live-line work certified
✓ EN 13414-1:2020 dynamic load testing
✓ Non-sparking materials (ATEX Zone 2 compliant)
✓ Dual safety lock prevents accidental release

Maintenance Specifications
• Self-cleaning jaw grooves require no lubrication
• Field-replaceable wear pads (tool-free change in <1 minute)
• 5000-cycle service life guarantee
• UV-resistant anodized coating (MIL-A-8625 Type III)
• RFID tag for digital service records

Typical Applications
➔ Dead-end conductor termination
➔ Mid-span repair sleeve installation
➔ Conductor lifting during tower erection
➔ Temporary bypass circuit creation
➔ High-angle slope stringing operations

Optional Accessories

Insulated hot-stick adapter (for 220kV+ live work)
Laser alignment guide for precise positioning
Load cell monitoring kit (±1% accuracy)
Arctic-grade version (-50°C operational)

Item number	Model	(KN)	Applicable Conductor	(MM)	(KG)
Item number	Model	Rated Load	Applicable Conductor	Max Open	Weight
13221	SKL-7	7	LGJ25-70	14	1
13222	SKL-15	15	LGJ95-120	18	1.4
13223	SKL-25	25	LGJ150-240	24	3
13224	SKL-40	40	LGJ300-400	32	4
13225A	SKL-50C	50	LGJ500-630	36	6.6
13224A	SKL-40A	40	LGJ400	32	4.3
13225	SKL-50A	50	LGJ500	34	7
13226	SKL-50B	50	LGJ630	36	7.3
13227	SKL-60	60	LGJ720	38	9.2
13228	SKL-70	70	LGJ900	42	14
13229	SKL-80	80	LGJ1000	45	18
13229A	SKL-80A	80	LGJ1120	48	18
