Angle Steel Q355B Q255B 110KV Lattice Transmission Tower

  • 1
  • 2

Brand Name : Suntech

Model Number : Transmission Angle Tower

Certification : ISO

Place of Origin : China

MOQ : 1 Tower

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 Metric Ton/Metric Tons Per Year

Delivery Time : 30-35 days after deposit

Packaging Details : Exported Containers

Product Name : Steel Power Transmission Angle Tower

Type : Tension

Material : Steel Q355B/Q255B

Voltage Grade : 110KV/132KV

Lifetime : More than 30 years

Application : Electric Power Transmission

Contact Now

Electric Tower 110kV Lattice Steel Power Transmission Angle Tower



Towers may be self-supporting and capable of resisting all forces due to conductor loads, unbalanced conductors, wind and ice in any direction. Such towers often have approximately square bases and usually four points of contact with the ground.

A semi-flexible tower is designed so that it can use overhead grounding wires to transfer mechanical load to adjacent structures, if a phase conductor breaks and the structure is subject to unbalanced loads. This type is useful at extra-high voltages, where phase conductors are bundled (two or more wires per phase). It is unlikely for all of them to break at once, barring a catastrophic crash or storm.

A guyed mast has a very small footprint and relies on guy wires in tension to support the structure and any unbalanced tension load from the conductors. A guyed tower can be made in a V shape, which saves weight and cost.

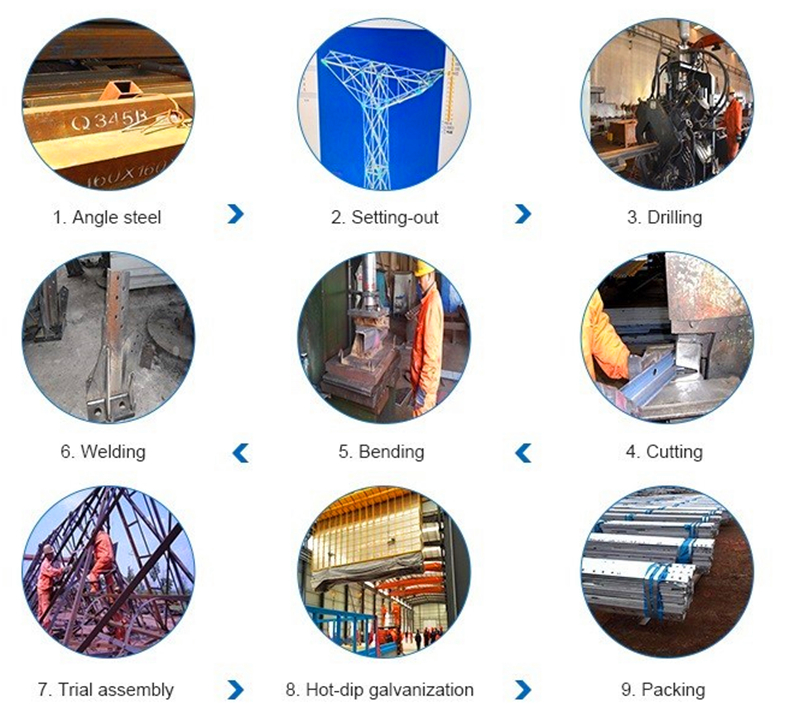

Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.



Item Name Design manufacture High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers
Type Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower
Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.
Power Capacity 10~1000KV
Welding Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment as your request
Galvanization Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required.
Joint Joint with insert mode, flange mode.
Painting According to clients' request
Life Period More than 25 years, it is according to installing environment
Certificates ISO9001-2008 , Test report of 500kV and 800kv Steel Tubular Tower & Transmission Line Tower
Packing According to customer's requirement
Height 10-105m
Wind Pressure 210Km/h
Capacity 5000 tons/month



Angle Steel Q355B Q255B 110KV Lattice Transmission Tower
