110 132kV 4 Legged Angular Steel Lattice Transmission Tower

110KV/132KV 4 Legged Electric Angular Steel Tower Lattice Transmission Tower

Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.

Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–30 kV, but normally carry only one or two conductors.

AC transmission towers may be converted to full or mixed Suntech use, to increase power transmission levels at a lower cost than building a new transmission line.

Angular Steel Lattice Transmission Tower

132kV Lattice Transmission Tower

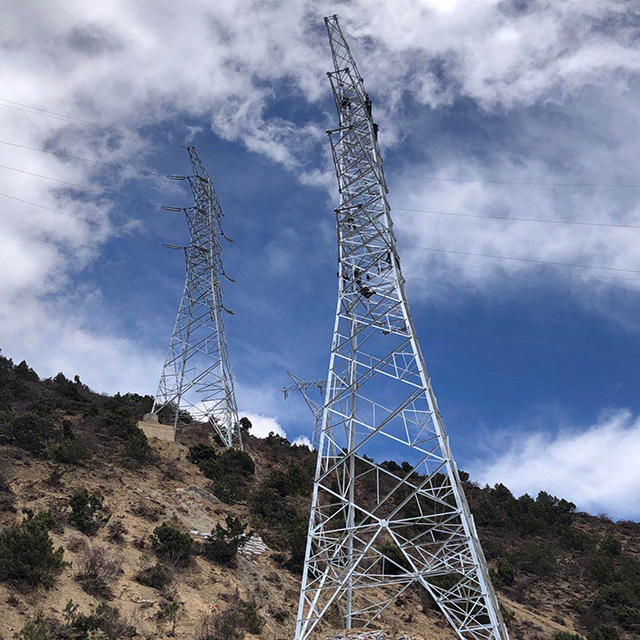

110kV 4 Legged Tower

110 132kV 4 Legged Angular Steel Lattice Transmission Tower Images
