5154 Aluminum Alloy Power Cable AAAC Conductor Wire

Name: 5154 Aluminum Alloy Power Cable AAAC Conductor Wire
Brand: Suntech
Price: 1 USD

Buy cheap 5154 Aluminum Alloy Power Cable AAAC Conductor Wire product

Brand Name : Suntech

Model Number : ACSR

Certification : ISO9001,CCC

Place of Origin : Ningbo,China

MOQ : 1000m

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000Ton/Month

Delivery Time : 10-15 workdays

Packaging Details : Exported Wooden Case or Containers

Name : Aaac Conductor

Type : High Voltage

Application : Overhead Line

Insulation Material : No

Material : Aluminum

Contact Now

Power Cable Manufacturers Aluminum Alloy 5154 Wire Aaac Conductor

The product of Power cable manufacturers aluminum alloy 5154 wire aaac conductor have been widely used in the overhead power transmisstion lines with the various voltage levels , because they are such good characteristics as simple structure ,convenient installation and maintenance .low cost large transmission capacity ,and they are also suitable for laying across rivers valleys and the place where special geographical features exist.

Specification of ASTM B399/B399M-2004 AAAC

AWG	Conductor size		Stranding		Mass	Rated strength	DC resistance at 20'C
AWG	mm2	cmil	No.	mm	kg/km	KN	Ω/km
	405.4	800000	37	3.73	1109	116	0.08285
	380.0	750000	37	3.62	1045	109	0.08796
	354.7	700000	37	3.49	971.2	101	0.09464
	329.4	650000	37	3.37	905.5	94.9	0.1015
	304.0	600000	37	3.23	831.9	91.0	0.11049
	278.7	550000	37	3.10	766.2	83.9	0.11995
	253.4	500000	19	4.12	695	74.2	0.13224
	228.0	450000	19	3.91	626	66.8	0.14683
	202.7	400000	19	3.69	557.5	59.5	0.16486
	177.3	350000	19	3.45	487.3	52.0	0.18860
	152.0	300000	19	3.19	416.7	46.6	0.22059
	126.7	250000	19	2.91	346.7	38.8	0.26509
0000	107.2	211600	7	4.42	294.7	32.5	0.31188
000	85.0	167800	7	3.93	233	25.7	0.3945
00	67.4	133100	7	3.50	184.8	20.4	0.49738
0	53.5	105600	7	3.12	146.8	17.0	0.62592
2	33.6	66360	7	2.47	92	10.6	0.9987
4	21.1	41740	7	1.96	57.9	6.69	1.5860
6	13.3	26240	7	1.55	36.2	4.18	2.5361

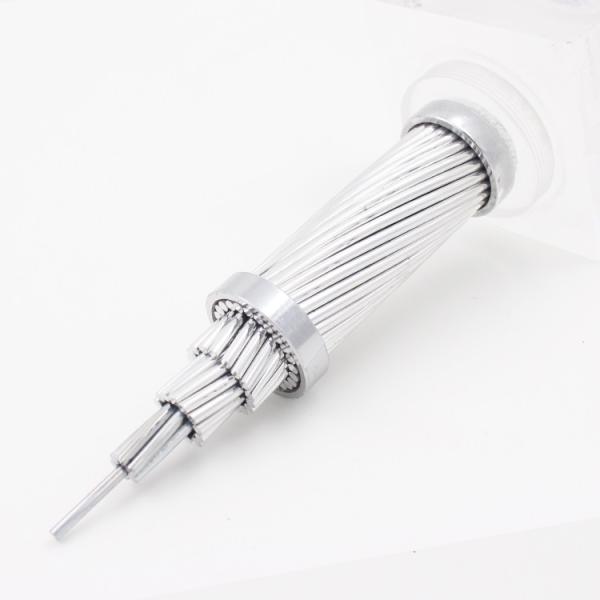

1. AAAC Cable Bare Conductor

These conductors are formed by several aluminium magnesium silicom wires stranded in concentric layers.

All the wires have the same nominal diameter. Most common constructions consist of 7, 19, 37 and 61 wires.

AAAC Cable APPLICATIONS

1.Busbars at H.V. Substations.

2.H.V. overhead lines.
