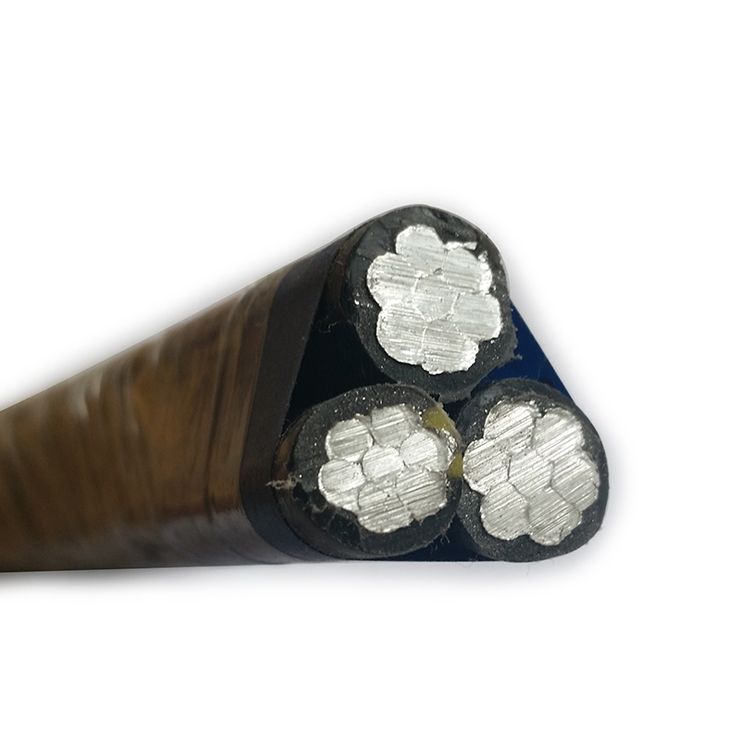

1kV Insulated ABC Overhead Cable For Distribution Line System

Name: 1kV Insulated ABC Overhead Cable For Distribution Line System
Brand: Suntech
Price: 1 USD

Buy cheap 1kV Insulated ABC Overhead Cable For Distribution Line System product

Brand Name : Suntech

Model Number : Insulated ABC Cable

Certification : ISO9001

Place of Origin : Zhejiang,China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000sets/month

Delivery Time : In Stock

Packaging Details : Exported Wooden Case or Containers

Name : ABC Cable

Number of Cores : 1-4

Cross-sectional area : 10-400mm²

Application : Transmission line and distribution line system

Standard : GB/T 12527-2008,GB/T 14049-2008,ICEA, AS, BS, DIN/VDE etc.

Usage : Transmission Line

Contact Now

1KV overhead insulated ABC cable is suitable for transmission and distribution lines. Such as high-rise buildings, tourist attractions, and areas with many trees.

Application: Transmission line and distribution line system

Standard: GB/T 12527-2008,GB/T 14049-2008,ICEA, AS, BS, DIN/VDE etc.

Features:

Number of Cores:1-4
Cross-sectional area:10-400mm²

Technical details

Type	Structure	No. of cores	Conductor nominal cross section (mm2)
JKV JKLV	CU/PVC AL/PVC	1	10-400
JKY JKLY	CU/PE AL/PE	1	10-400
JKYJ JKLYJ	CU/XLPE AL/XLPE	1	10-400
JKLHV	AL alloy/PVC	1	10-400
JKLHY	AL alloy/PE	1	10-400
JKLHYJ	AL alloy/XLPE	1	10-400
JKLGV	ACSR/PVC	1	10-400
JKLGY	ASCR/PE	1	10-400
JKLGYJ	ACSR/XLPE	1	10-400
BS1-JKV BS1-JKLV	CU/PVC AL/PVC	4	10-400
BS1-JKY BS1-JKLY	CU/PE AL/PE	4	10-400
BS1-JKYJ BS1-JKLYJ	CU/XLPE AL/XLPE	4	10-400
